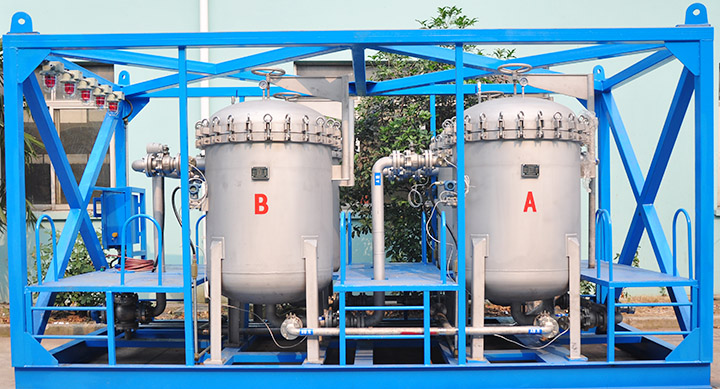

| Multiple bags filter |
-
Technical parameters
Manufacturing standards: GB150 "CS", ASME "U" stamp.
Working pressure: 0.6 MPa ~ 5.0 MPa.
Design temperature: 0 ~ 80 ℃.
Applicable medium: water, chemicals, gas and other flammable and explosive materials.
Pressure and temperature depend on the strength and material of filter elements. Please consult us if you are in special condition.
-
Features:
Filter bag support: electrolytic polishing stainless steel porous support filter basket.
Unique three point fixed mode of filter bag, to ensure that there is good sealing performance between filter bag and filter shell, and hydraulic or pneumatic cylinder is optional.
High quality O ring seal, to guarantee the operation is convenient and reliable.
The design of side in and bottom out ensures that the liquid can be completely discharged. Meanwhile there is tangent-position outlet can be chosen.
Standard mode is for 2 ~ 24 bag (1# and 2# bag), and the largest filter we can produce now is 40-bag ones.
-
Material
Shell material: # 20, 304, 316L、2205、2507.
Sealing gasket: Silicone, NBR, Viton.
Filter bag material: Polyester, PP, Nylon, PTFE, Glass Fiber
-
Model selection
|
Model
|
Bag model
|
Bag Quantity
|
Filtration area (m2)
|
Max. flow rate (m3/h)
|
Pressure
(Mpa)
|
Inlet &outlet
|
Material
|
|
SGD-S2
|
2
|
2
|
0.9
|
50
|
1.0
|
2-1/2"
|
Q345R/304/316L/F55
|
|
SGD-S3
|
2
|
3
|
1.35
|
75
|
1.0
|
3"
|
Q345R/304/316L/F55
|
|
SGD-S4
|
2
|
4
|
1.8
|
100
|
1.0
|
4"
|
Q345R/304/316L/F55
|
|
SGD-S5
|
2
|
5
|
2.25
|
125
|
1.0
|
5"
|
Q345R/304/316L/F55
|
|
SGD-S6
|
2
|
6
|
2.7
|
150
|
1.0
|
6"
|
Q345R/304/316L/F55
|
|
SGD-S8
|
2
|
8
|
3.6
|
200
|
1.0
|
6"
|
Q345R/304/316L/F55
|
|
SGD-S9
|
2
|
9
|
4.05
|
225
|
1.0
|
8"
|
Q345R/304/316L/F55
|
|
SGD-S10
|
2
|
10
|
4.5
|
250
|
1.0
|
8"
|
Q345R/304/316L/F55
|
|
SGD-S12
|
2
|
12
|
5.4
|
300
|
1.0
|
10"
|
Q345R/304/316L/F55
|
|
SGD-S16
|
2
|
16
|
7.2
|
400
|
1.0
|
12"
|
Q345R/304/316L/F55
|
|
SGD-S18
|
2
|
18
|
8.1
|
450
|
1.0
|
12"
|
Q345R/304/316L/F55
|
|
SGD-S24
|
2
|
24
|
9.0
|
600
|
1.0
|
12"
|
Q345R/304/316L/F55
|
|
Accuracy :0.1, 0.2 .0.3 , 0.5, 1 , 5, 10, 15, 25, 50, 100, 200, 300, 400, 500, 600 Microns
|
|
|
